Bitumen filter

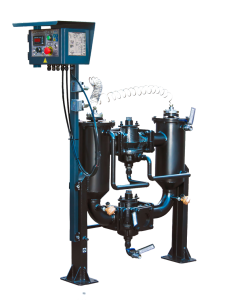

FBS-1 bitumen filter is designed to remove solid contaminants from bitumen and other non-corrosive liquids. The filter is intended for integration into input, storage and output processes involving regular or modified bitumen, bitumen emulsions and other high viscosity liquids which require heating. This filter has two filter cartridges so as to operate continuously. It also features temperature and pressure sensors for increased reliability and safety.

Bitumen filter

Specification Value
Mean nominal diameter, mm 80
Capacity, m3/hour 15
Filtration fineness, mm 5/1
Bitumen input pressure, kg/cm2, (MPa) 2 (0.2)
Heat carrier operating pressure, kg/cm2, (MPa) 4 (0.4)
Bitumen input temperature,°C 140-160
Heat carrier temperature, °C max 200
Dimensions without control cabinet (L/W/H), mm 925/380/1100
Max weight, kg 170
