Bitumen emulsion unit 2 m3/hour production capacity

The UVB-1- bitumen unit is designed for the production of anionic and cationic bitumen emulsions, which are used in road construction for the following purposes:

– tack-coating of the old road pavement base before laying new asphalt concrete;

– preparation of cold asphalt concrete mixes;

– surface treatment of pavements;

– thin protective coatings;

– road top patching;

– dampproofing of buildings and structures;

– soft roofs construction and repairing.

. The UVB-1 also features injection of various components into the emulsion, such as stabilizers, viscosity adjustment and adhesion materials, as well as latex, which allows to make a product more stable to high and low temperatures. If latex modification is required, the plant features an inlet for latex injection module, located after the hydrodynamic mixer, before the mill, through which the product passes for full mixing with the emulsion.

Different types of emulsion (anionic or cationic) can be modified with anionic and cationic latexes respectively.

Plant UVB-1 (hereinafter init) designed for production of bitumen emulsions (see figure 1 and 2) is a semiautomatic unit, which consists of several sections mounted on a common frame and connected by means of pipelines:

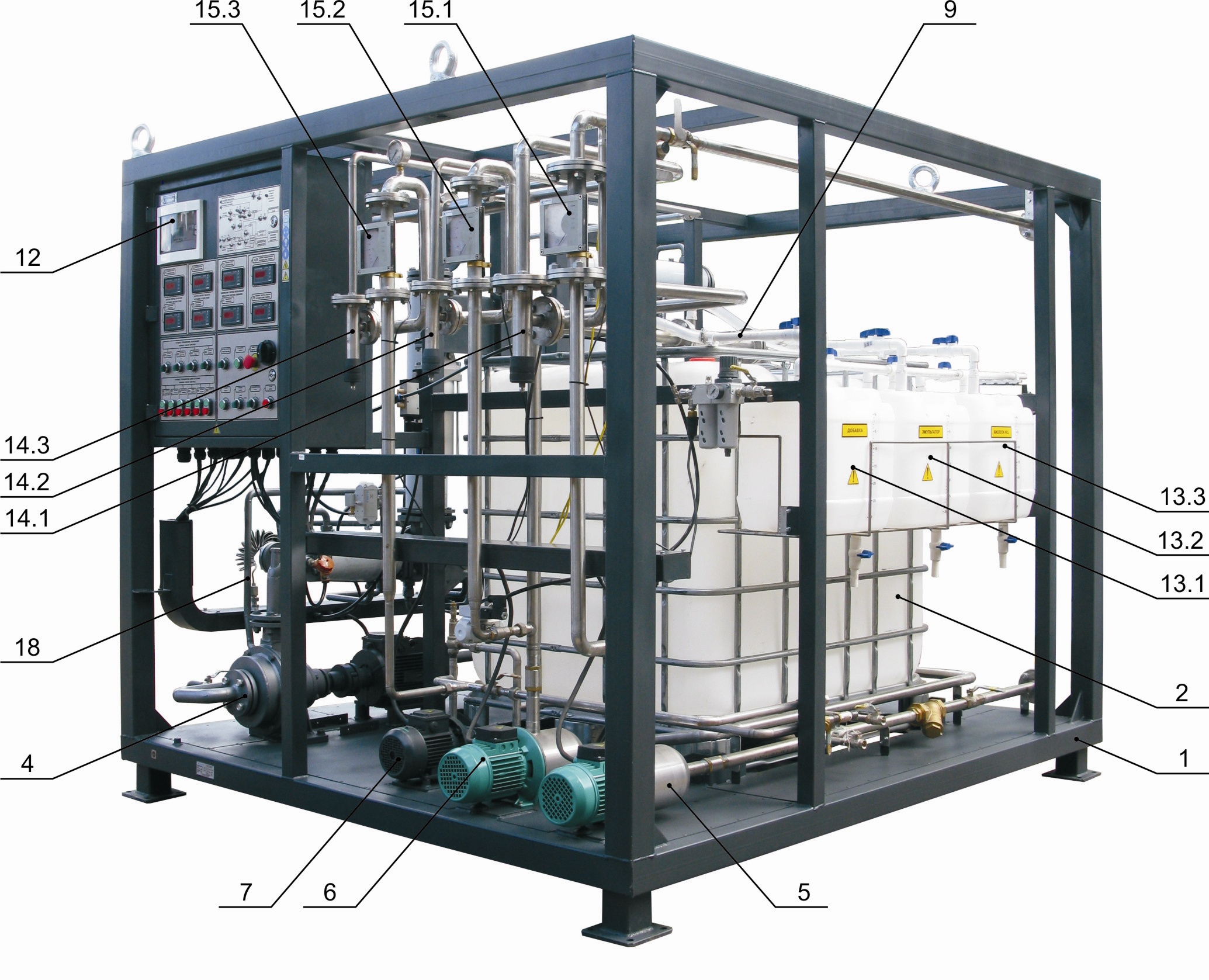

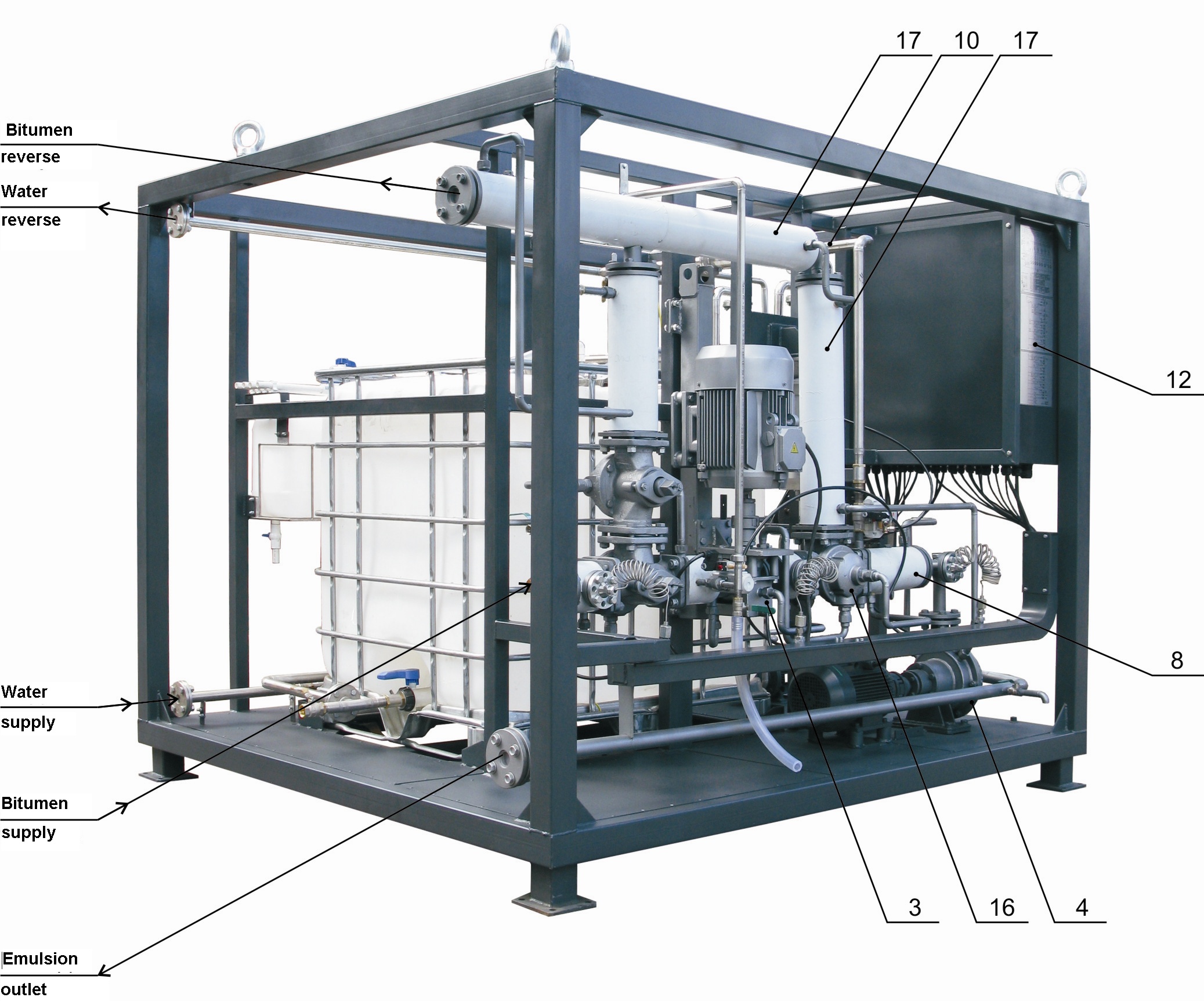

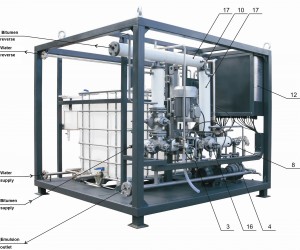

Figure 1 – Unit general view (control panel side)  Figure 2 – Unit general view (bitumen pump side)

Item Description Item Description
1 Frame Faucets for
2 Blending tank 14.1 Water
3 Pumping unit 14.2 Blending
4 Mill 14.3 Flux
5 Water pump Flow indicator (rotameter) of
6 Blending pump 15.1 Water
7 Flux pump 15.2 Blending
8 Hydrodynamic mixer 15.3 Flux
9 Blending mixer 16 Pneumatic bitumen three-way valve
10 Water phase mixer 17 System of heated bitumen pipelines
12 Control panel (CUU) 18 Pipelines of oil heating
Gauging tanks section
13.1 Acid
13.2 Emulsifier
13.3 Adhesive additive

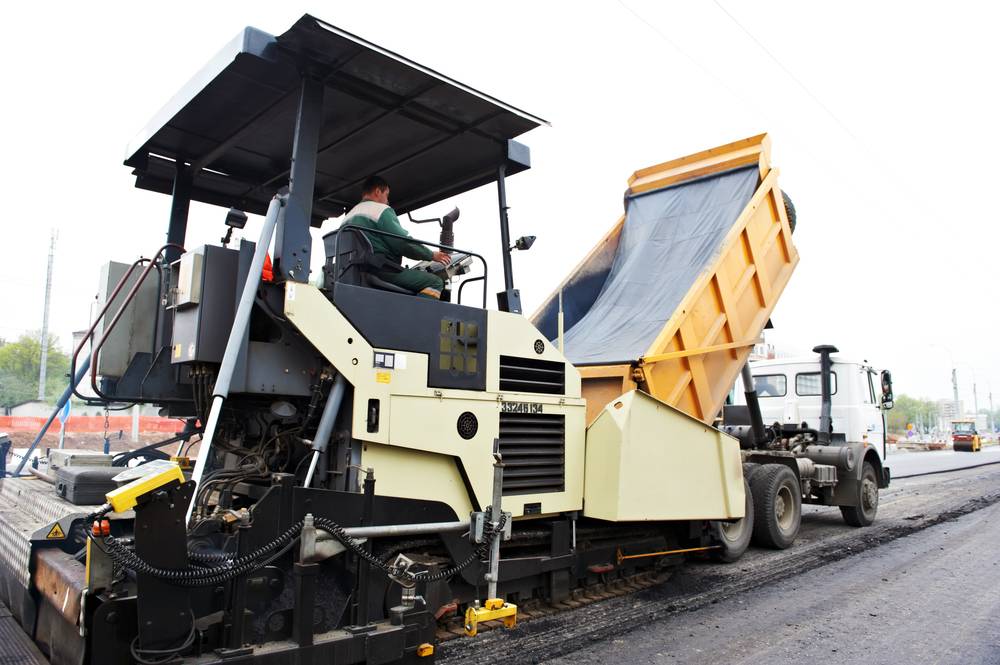

Tracked paver at asphalt pavement works for road repairing

Tracked paver at asphalt pavement works for road repairing

Parameter Value
1 Maximum capacity (taking into account preparation time), m3/h 2*
2 Minimum bitumen consumption (at penetration rate 90…130), m3/h 1,5
3 Water consumption, m3/h 0,6…1,5*
4 Flux consumption (at bitumen penetration rate less than), dm3/h 0…50*
5 Acid consumption, dm3/h 5…20*
6 Emulsifier consumption, dm3/h 5…20*
7 Adhesive additive consumption, dm3/h 1…20*
8 Maximum input bitumen pressure,   MPa 0,2
9 Pressure of bitumen supplied the blender, MPa 1,4…1,6
10 Water phase pressure supplied to blender, MPa 0,2
11 Input bitumen temperature, оС 140-160
12 Input water temperature, оС 40-60*
13 Maximum emulsion output lift, (m) 15
14 Maximum power consumption, kW 17
15 Power circuit voltage at 50Hz, V 400
16 Compressed air pressure, bar 4…6
17 Air consumption, dm3/min 250
18 Maximum dimensions, mm:
     -length 2340
     -width 2080
     -height 2080
19 Maximum weight, kg 1410

* Depending on the formula of produced emulsion!
