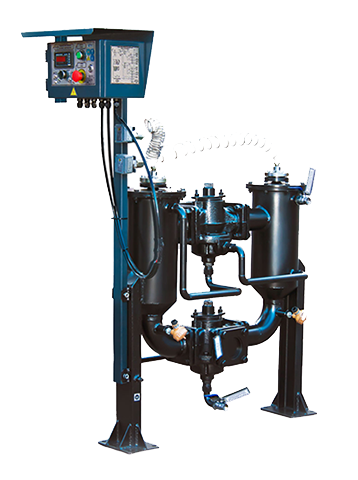

Laboratory bitumen emulsion plant (UVB-1-L)
GlobeCore offers laboratory scale UVB-1-L units for perfection of water-bitumen emulsion recipe depending on its composition and application – a good idea considering the much lower cost of components for sample production and elimination of losses if the results are unsatisfactory and production must be readjusted.
The UBV-1-L produces small samples for bitumen emulsion.
UVB-L laboratory plant is designed for the following purposes:
— preparation of laboratory samples of bitumen emulsions;
— testing and refining of the bitumen emulsion recipe with given emulsion components and intended emulsion application.
This unit can be supplied in addition to UVB-1 bitumen emulsion production unit or as a stand-alone product.
| Parameter | Value | |
| 1 | Emulsifying capacity (for a batch), l/min | 20 |
| 2 | Blender ingoing bitumen pressure, MPa | 1.6 |
| 3 | Bitumen temperature, ºC | 140-160 |
| 4 | Blending temperature, ºC | 40-60 |
| 5 | Nominal power, kW | 6.0 |
| 6 | Power circuit voltage, V | 400 |
| 7 | Max overall dimensions, mm | |
| – length | 1450 | |
| – width | 700 | |
| – height | 1300 | |
| 8 | Weight, kg | 195 |
UVB-L unit is a semi-automatic device.

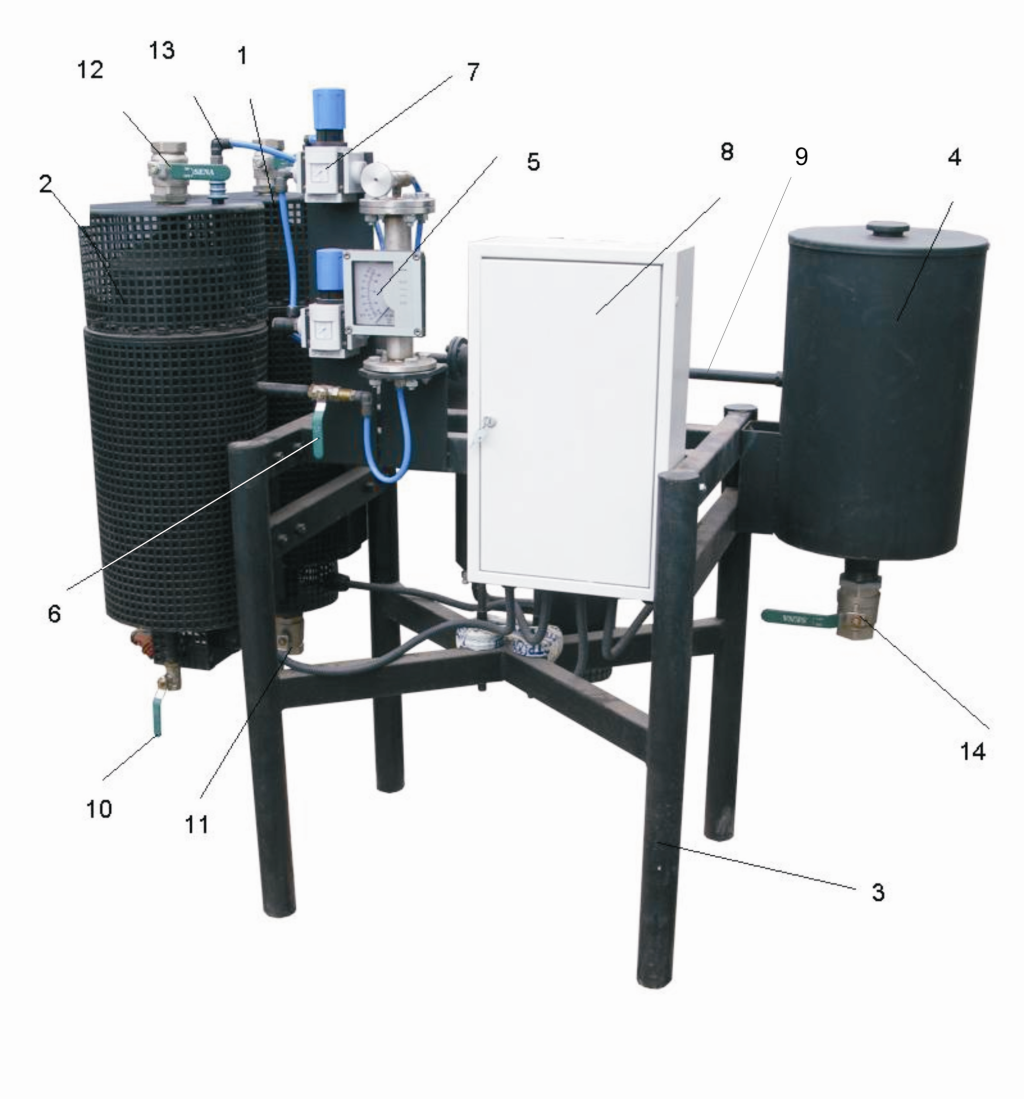

1- bitumen heating vessel; 2- blending heating vessel; 3- frame; 4- emulsion collector; 5- blending rotameter; 6- ingoing blending valve; 7- pressure adjusting devices; 8- control cabinet; 9- injective blender; 10- discharge blending valve; 11- discharge bitumen valve; 12- ingoing blending valve; 13- ingoing bitumen valve; 14- discharge emulsion valve.
