Bitumen modification unit 4-7 m3/hour production capacity

Bitumen modification unit

UVB-2 bitumen modification unit  is designed for preparation of modified bitumen by introduction of polymers into straight bitumen.

This plant is designed for modification of bitumen by adding polymer, adhesion additive and plasticizer to the bitumen. Modified bitumen is used for production of road top layer asphalt, protective layers of concrete buildings and crack sealants, as was discussed in more detail previously.

Using the modified bitumen instead of the regular bitumen in asphalt concrete mixes allows to extend the temperature range of the asphalt’s performance in seasonal temperature changes, ensures deformation resistance under traffic loads (rutting and cracking) and increases the overall service life of the road.

Virtually any modification recipe can be implemented in the plant, with carious modifiers, such as polymer, wax etc.

Modified bitumen is used in road, bridge and overpass construction and repair. The unit is designed for facilities involved in repair and production of asphalt road top, water-proofing of structures and soft roofing.

A typical 4-7 cubic meter per hour plant is built on a structural frame, which supports components such as two reactors, mill, components supply assemblies, oil heater and circulation system, computer control panel and a polymer loading platform.

Parameter Value
1. Capacity, m3/hour 4-7
2. Consumption of polymer per 1 m3 of bitumen, kg 10…100
3. Mode of operation                                                                                                        batch
4. Number of reactors 2
5. Nominal power, kW
-mill 45
-bitumen to mill supply pump 7,5+7,5
-bitumen input/output pump 7,5
-agitator drive 2×5,5
-heater total power 4×27
-heat carrier supply pump 3
-control systems 0,8
-plasticizer supply pump 3
-adhesion additive supply pump 0,25
-total 193,5
6. Electric power parameters
– voltage, V 380
– AC frequency, Hz 50
7. Dimensions (except components removed for transportation), mm max
– length 5200
– height 2950
– width 2400
8. Max weight, kg 6200

uvb-2

Figure 1 – Bitumen modification general view

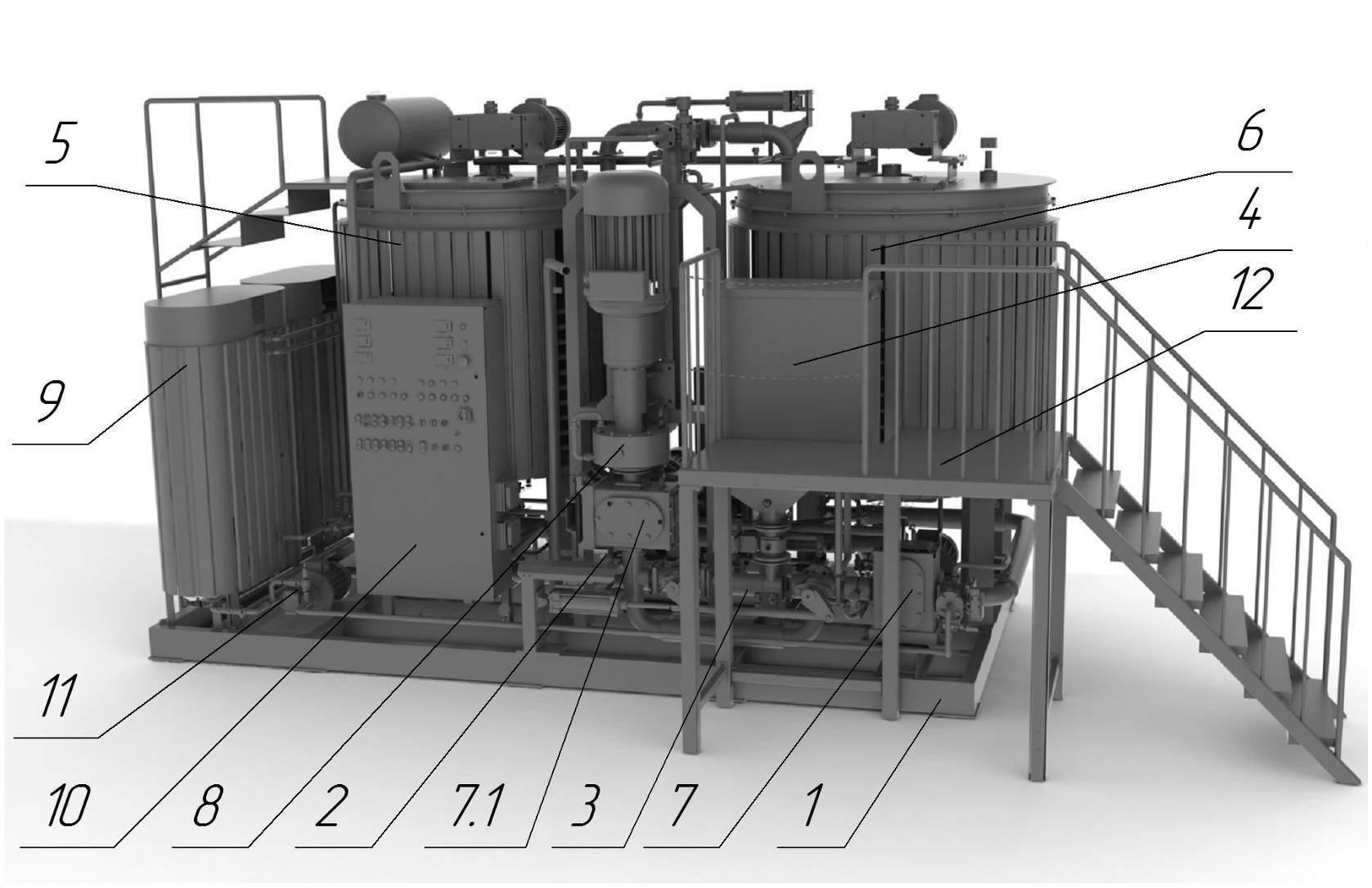

1 – frame; 2 – input/output pump (located in the back); 3 – mixer; 4 – polymer input hopper; 5 – reactor No 1; 6 – reactor No 2; 7 – mixer supply pump; 7.1 – mill supply pump; 8 – mill; 9 – heater; 10 – control cabinet; 11 – plasticizer feed assembly; 12 – polymer loading platform

The bitumen modification plant  is a unit consisting of two reactors, a mill, an oil heater, bitumen supply assembly, control cabinet, polymer feed assembly, electro-pneumatic valves, heating system, adhesion additive feed assembly, plasticizer (oil) feed assembly, and a polymer loading platform.

All components of the unit are mounted on steel frame.
